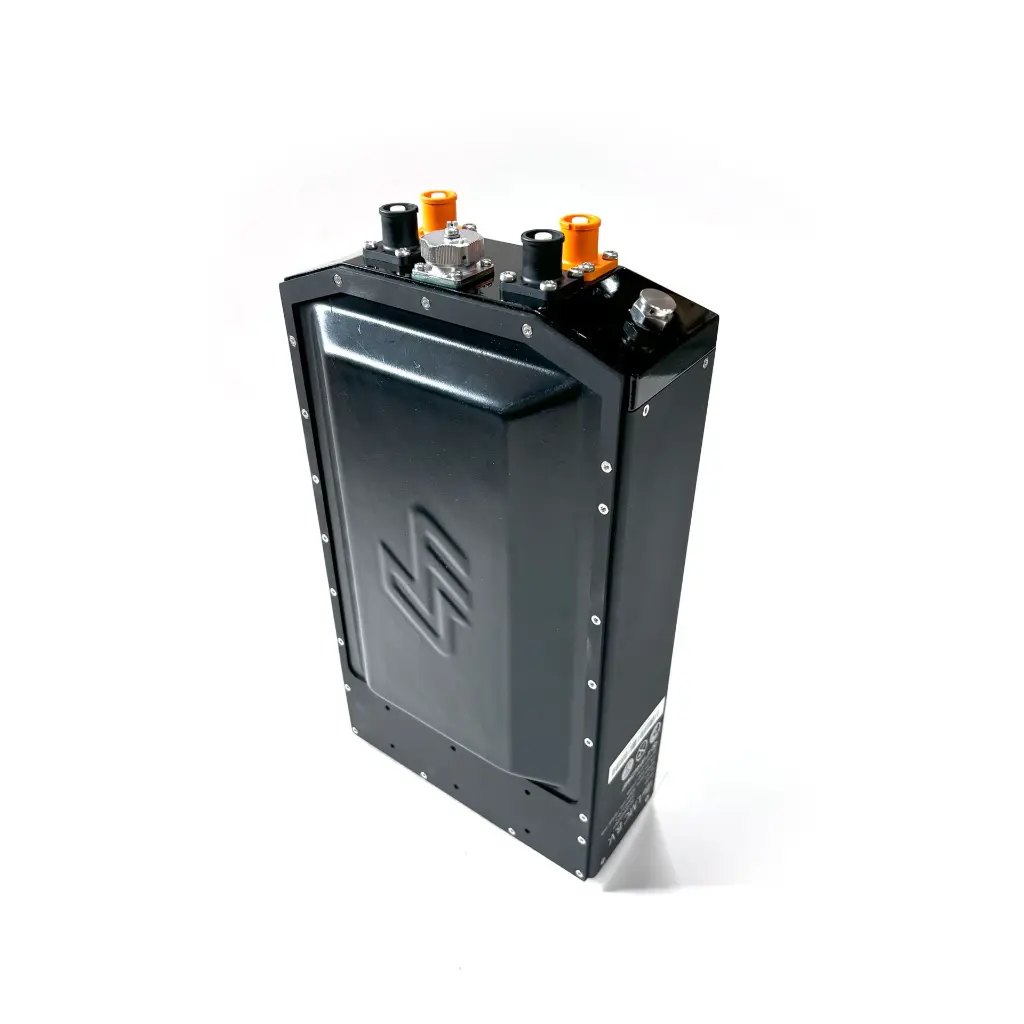

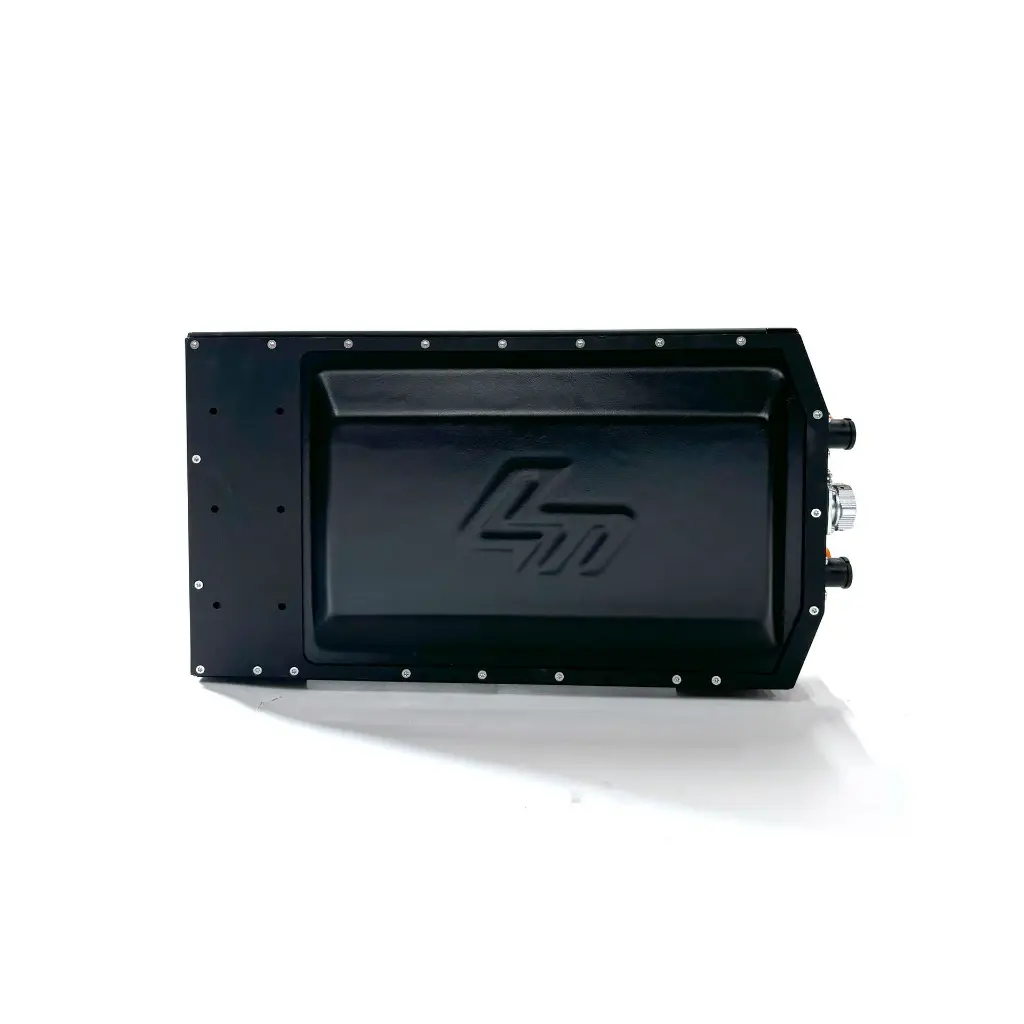

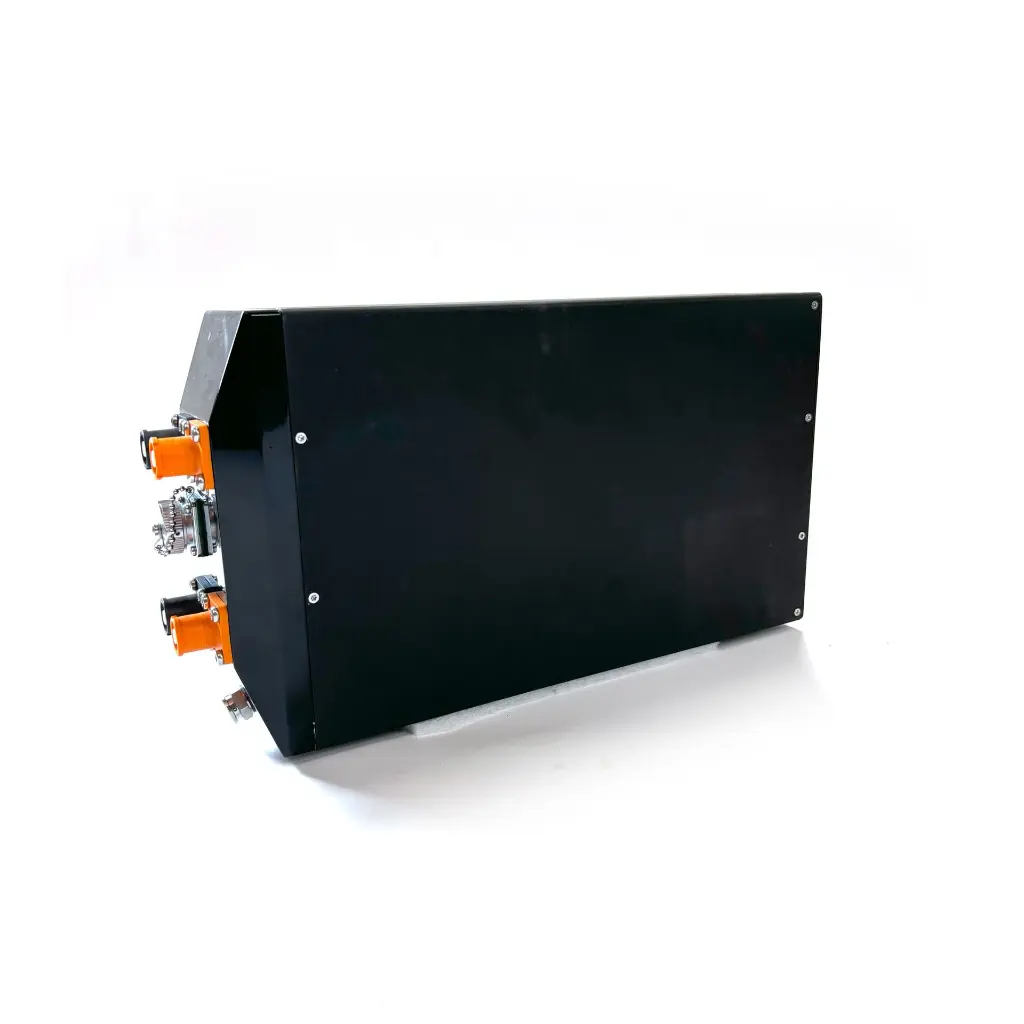

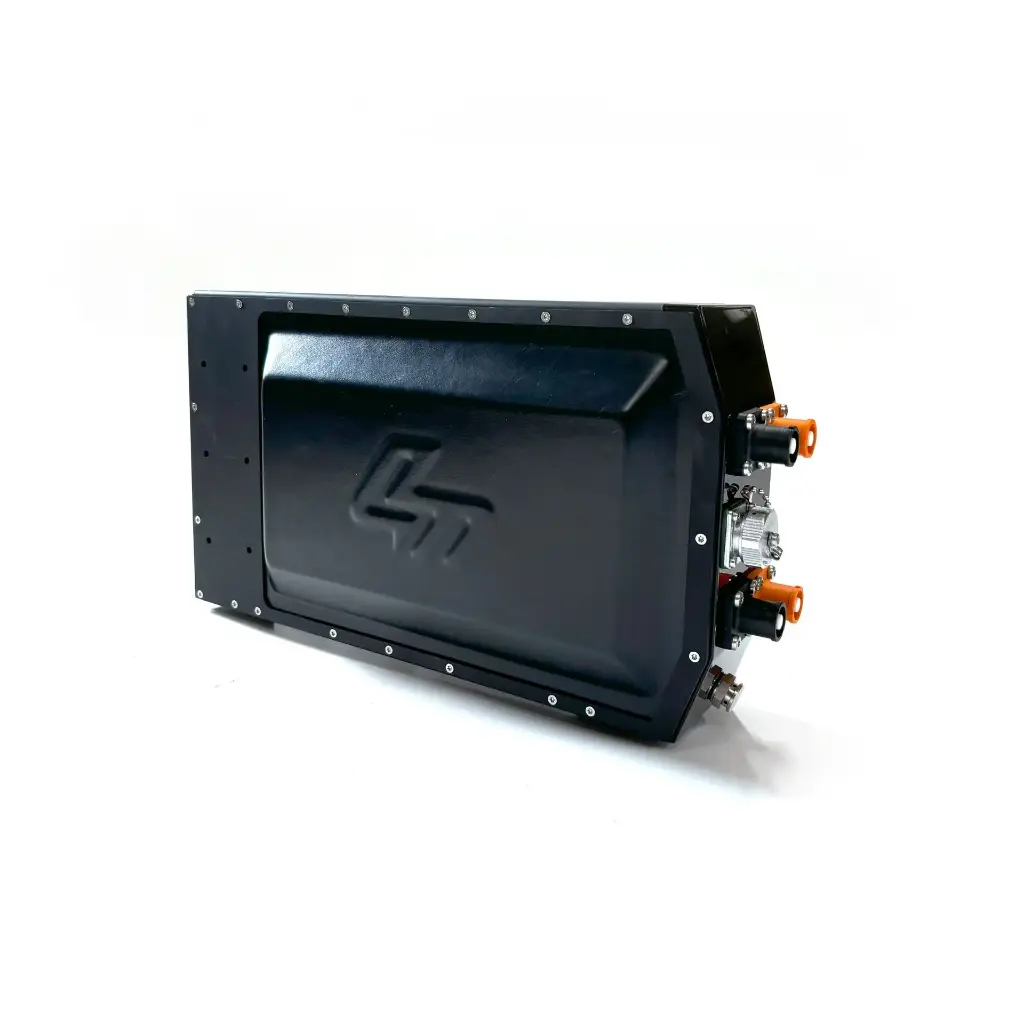

LMC Modular Battery Pack 72V 2.6kWh

https://lmcreations.eu/web/image/product.template/4/image_1920?unique=d654fdf

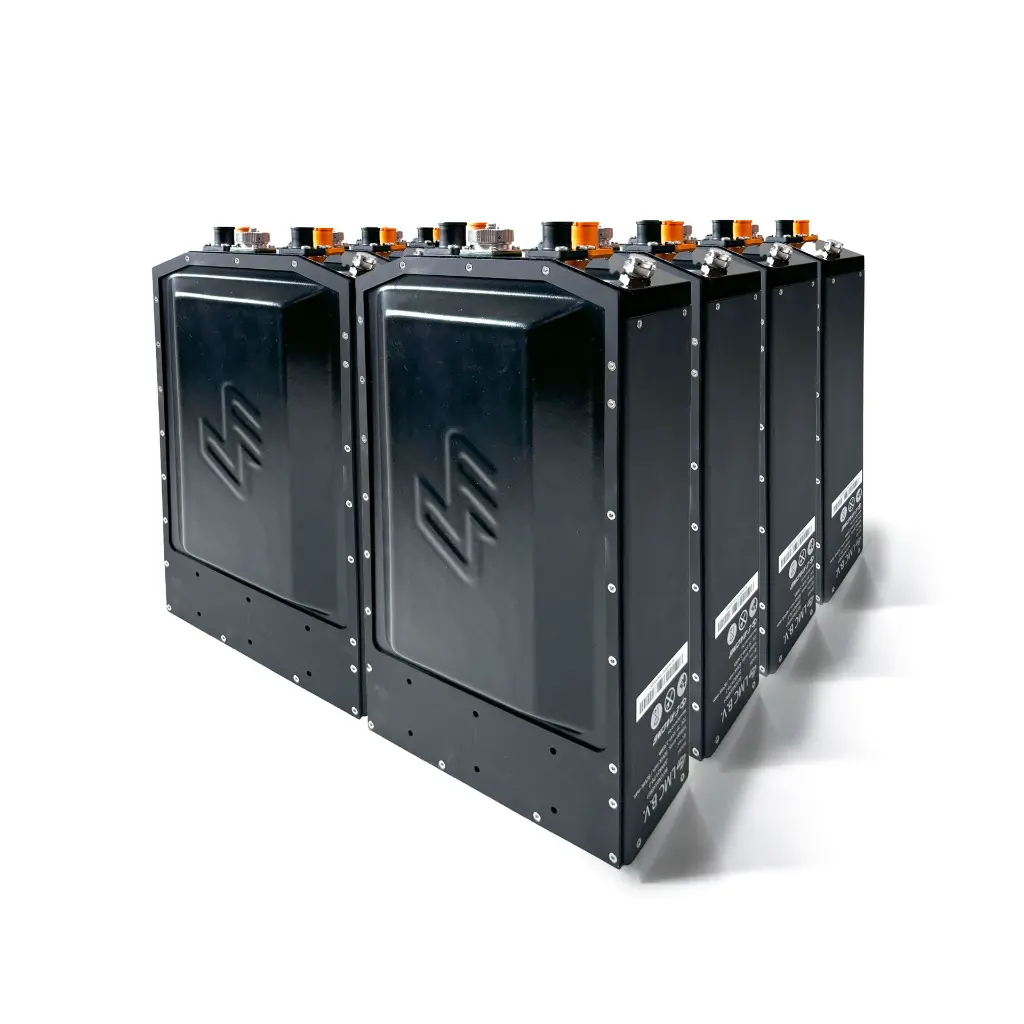

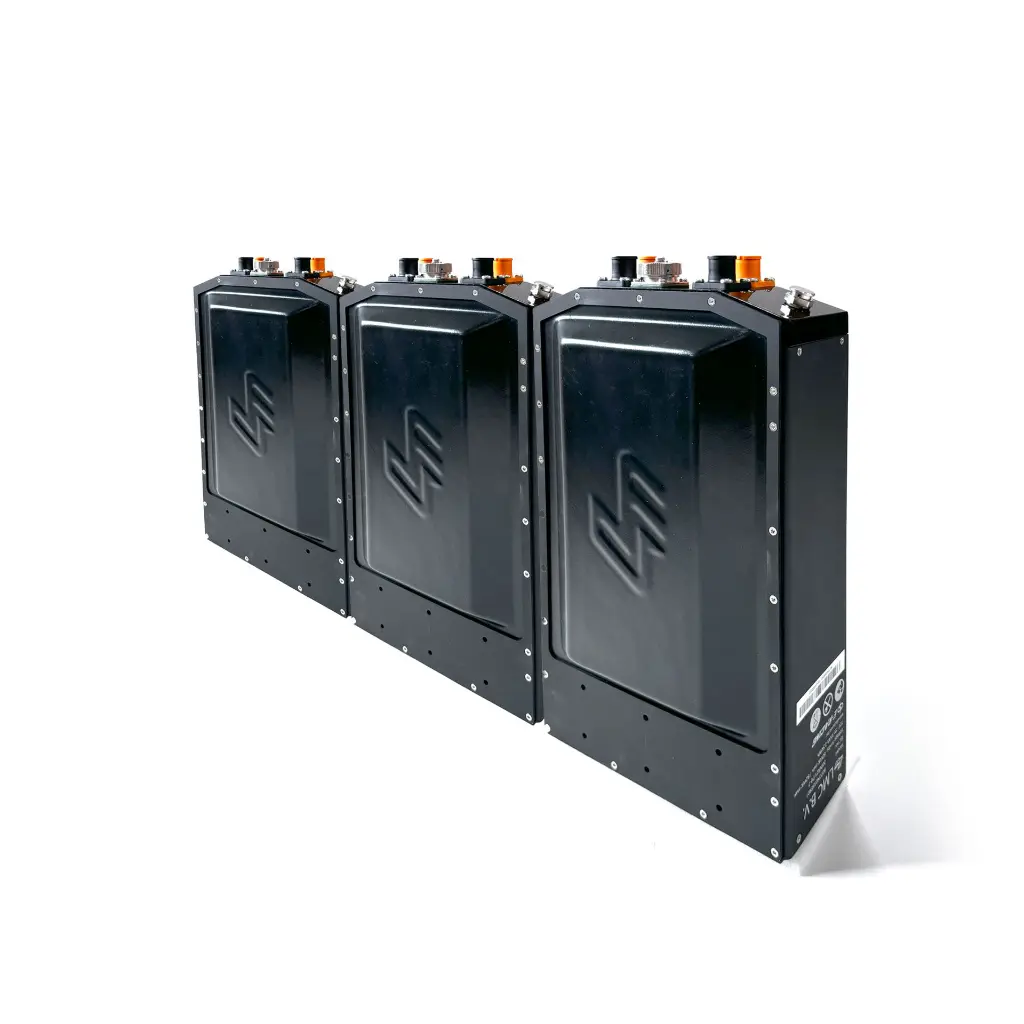

With our NEW modular battery pack it’s easy to configure your own high capacity 72V system battery system by connecting packs in parallel. Up to a max of 20.8 kWh (8 packs) with a continues discharge current of 225A. It’s possible for each battery packs BMS module to communicate with one and other creating a save battery pack configurable in any orientation.

On our 2024 R00 Kits we use 2 modular packs creating the 72V 5.2kWh 150A continues system with 225 peak current. And with the modularity of this system it’s now possible to add range by placing extra 2.6kwh packs elsewhere on the bike for example in luggage cases or in a sidecar.


2.490,00 € 2490.0 EUR 2.490,00 €

2.490,00 €

Niet beschikbaar voor verkoop

Deze combinatie bestaat niet.

Individual pack specifications:

Li-ion Cell configuration:                20S7P

Rated capacity min.:                          2.6 kWh.

Continuous discharged current:    75A

Peak discharged current:                  120A (<5s)

Charging current max.:                      25A

Maximum charge voltage:                82Vdc

Minimum discharge voltage:           60Vdc

Dimensions:                                        400x215x107

Material: Aluminium & Nylon outer casing

Weight:                                              13KG

Range capacity:                                 ± 50km (depending on specs of the motorcycle).

Each pack will come with 2 sets of connectors, usable for 35mm2 and 50mm2 cables

*Cable not included see other products

*prices are excluding shipping, shipping cost will be invoiced when kits are ready to ship.

For now, choose Custom shipping at check out, we will quote a price for you!

shipping rate indication: (if you want to know the exact price please contact us)

​West Europe  ​ ​€150,-

​East Europe  ​ ​€300,-

​​USA/Canada ​​ ​€600,-

​​Other ​ ​​ ​€850,-
