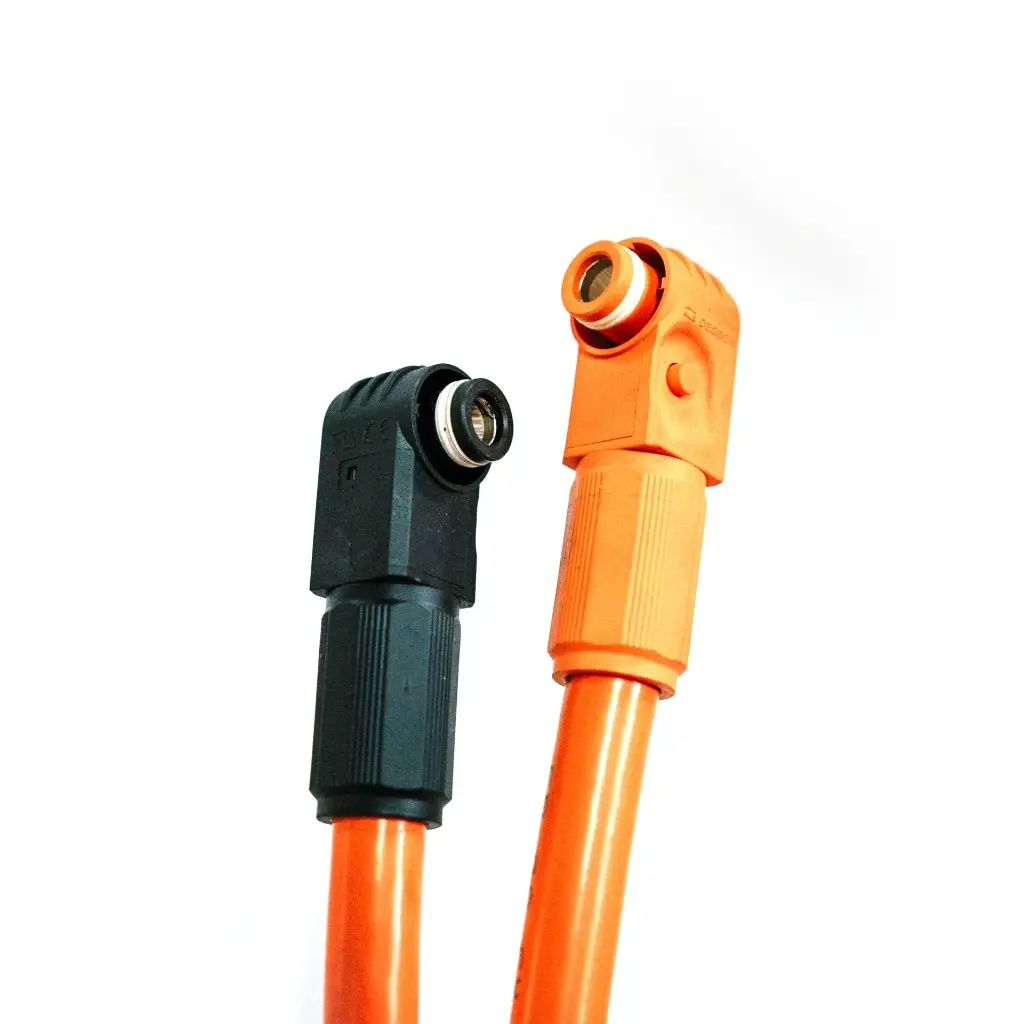

High-current 35mm2 200A MALE + FEMALE
Rated current: 200A
Rated voltage: 1000V
Ingression protection: IP67
Flammability protected: UL94-V0
Cable size: 35mm2
Touch-proof
Spring lock for secure connection
A compact detachable high-end industrial connector with a continuous current rating of 200A and rated voltage 1000V. These are touch-proof, rugged and IP67 grade waterproof. The connectors are secured tightly together with a spring locking mechanism. Widely used in high-current industrial applications (EV, BMS, energy storage, heavy equipment, railway systems)
We use these for our 2024 R00 kit as these are probably the best high-current connectors on the market.
The connector part is crimped to 35mm2 cable and the panel mount plug uses M8x1.25 nut.
This item includes both the connector and the panel mount plug (male and female).
