EV BMW R00 CONVERSION KIT
SPECS on the R00 in a nutshell:
- 72V Power unit, with a max peak up to 18kw and 90Nm with a max rpm of 7500
- 2x our 2.6kWh packs resulting in a 5.2 kWh 72V 58AH power batterypack
- Max. current 350A
- New Aluminium cast housing Black or Silver.
- 80km Urban range
- Charge cycles >2000 (about 160.000km)
- included 18A charger
- included SOC display showing %, V, Amp
- paintable gastank shell
- Bolt on to R type airhead gearboxes form 1969 til 1996 (R45-R100)
- Fits models for flywheels with M11x1.5 bolts
Included in the kit with battery:

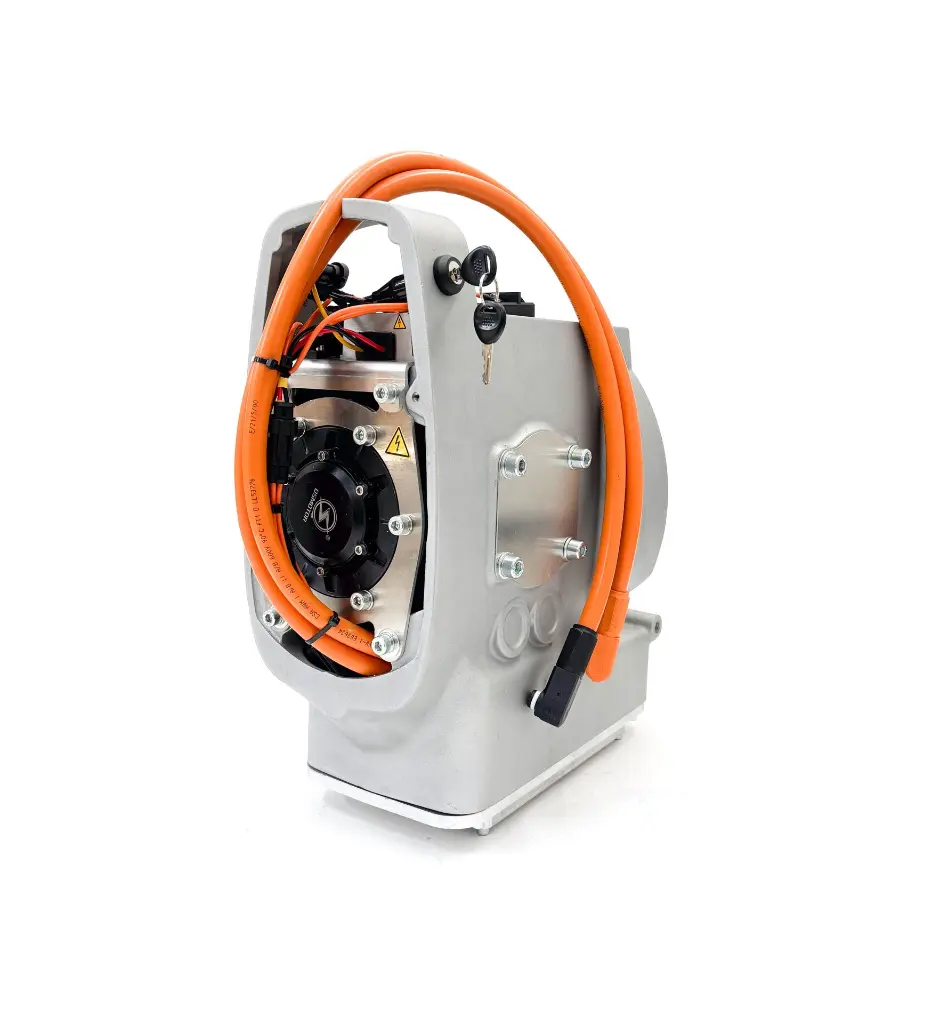

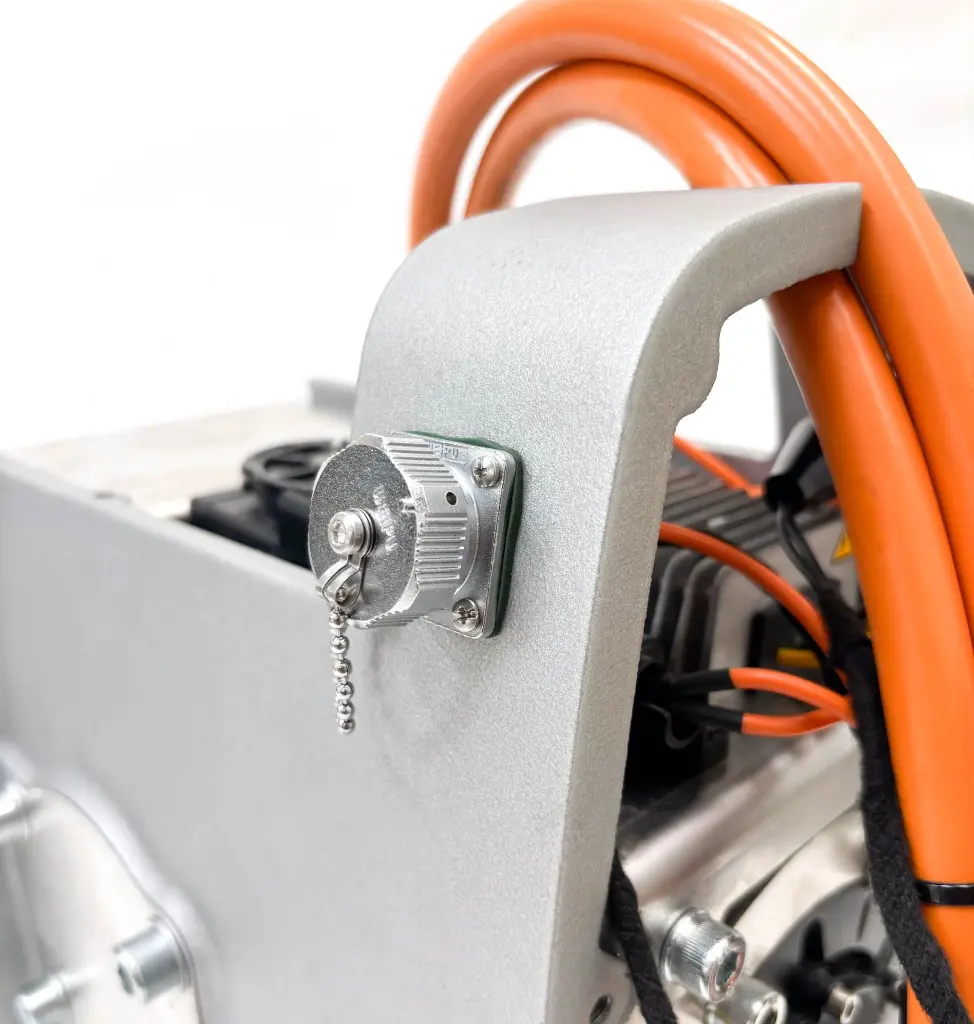

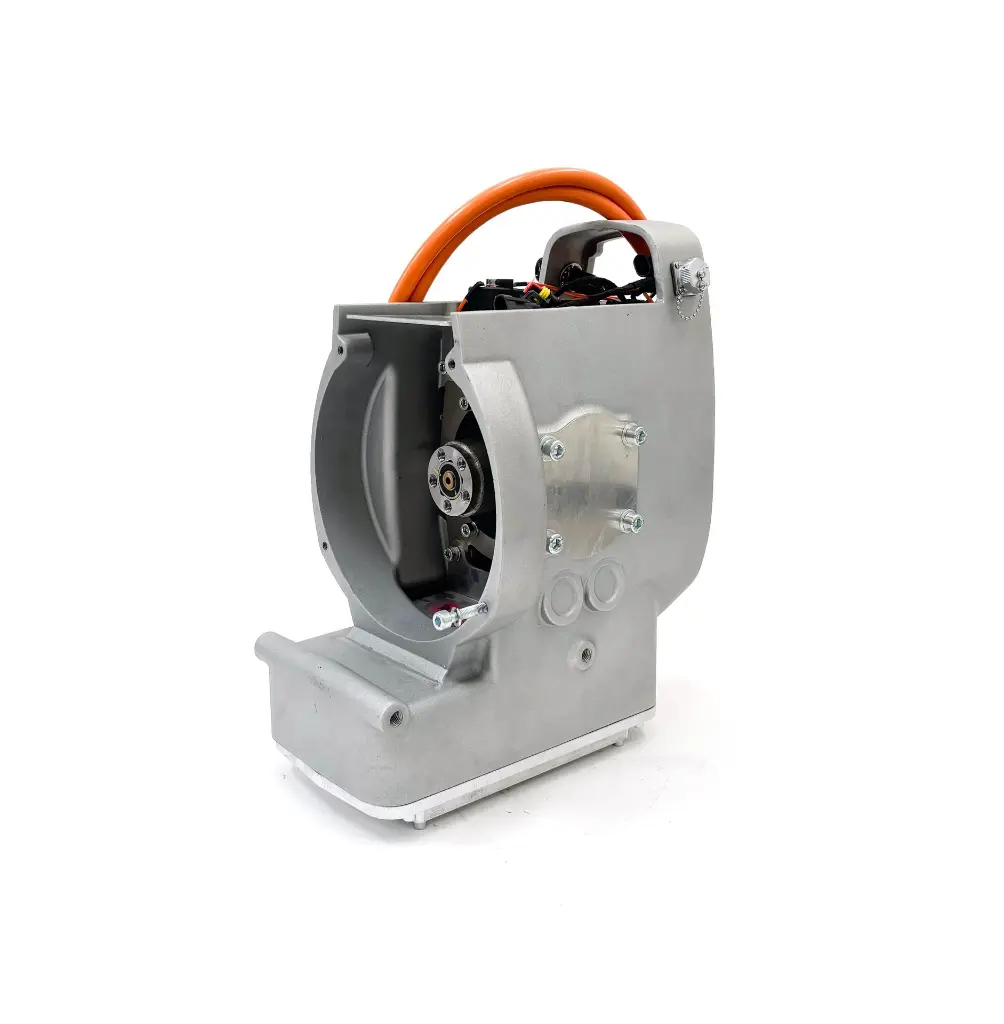

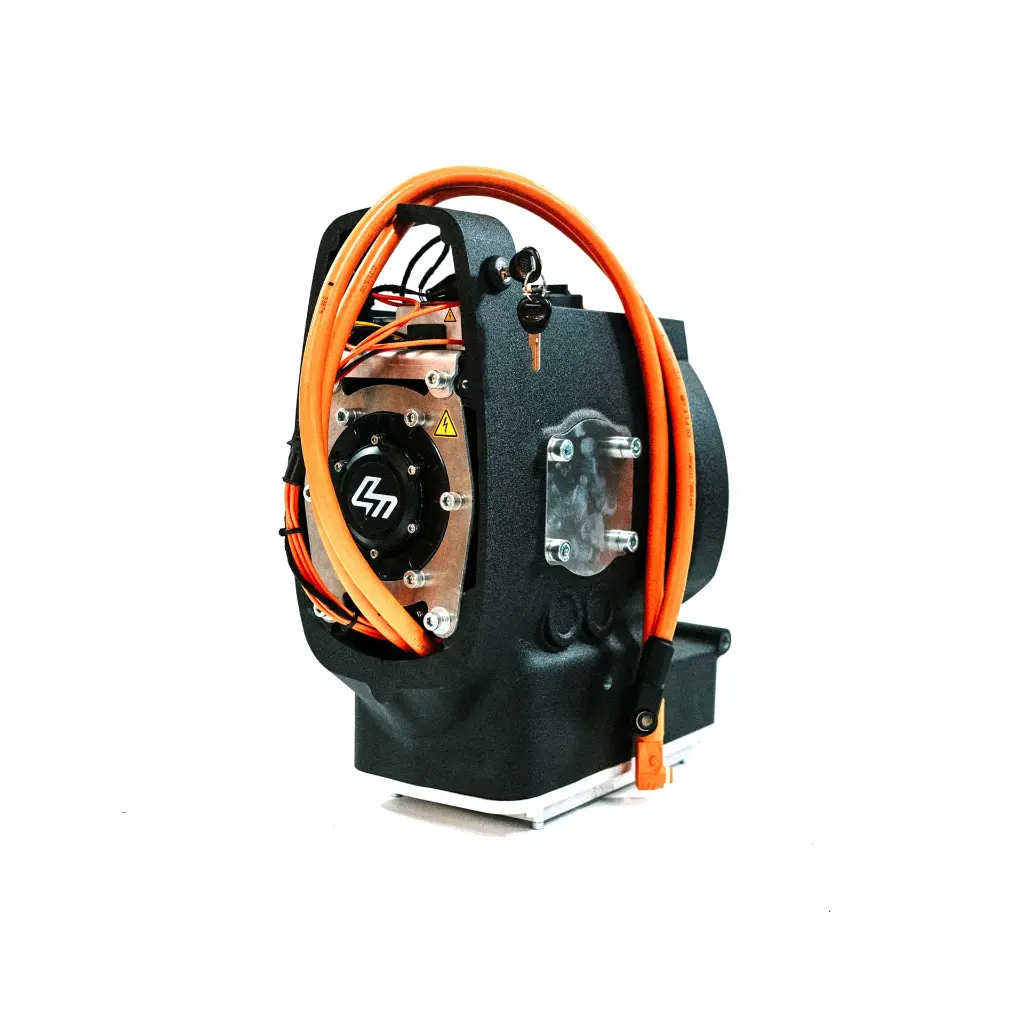

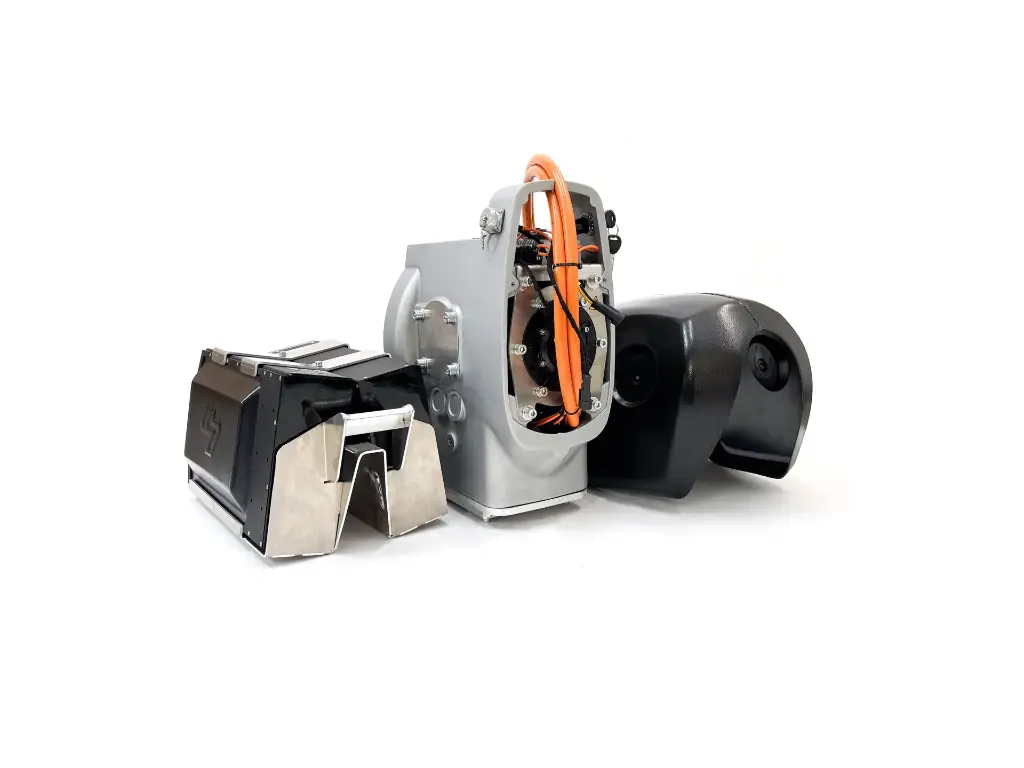

- New aluminum cast power unit black or silver that holds the: EV-motor, controller, relais, key switch, charge port, 12V converter.

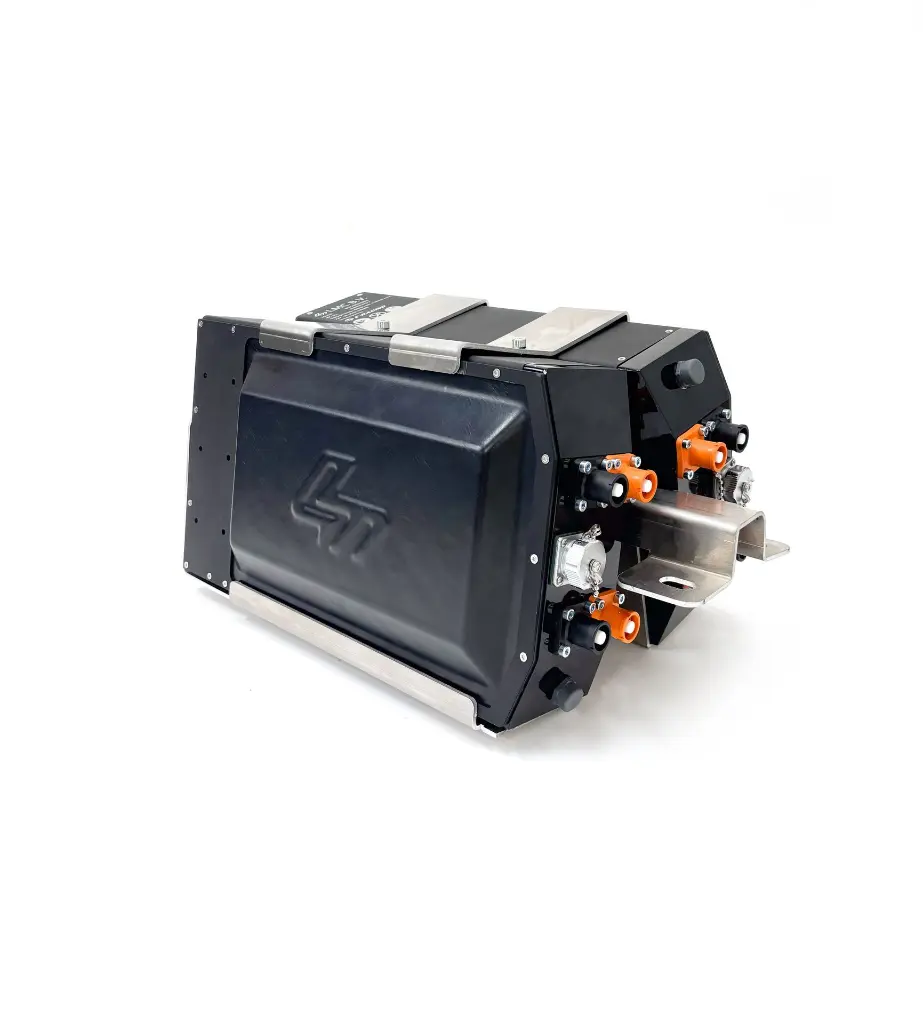

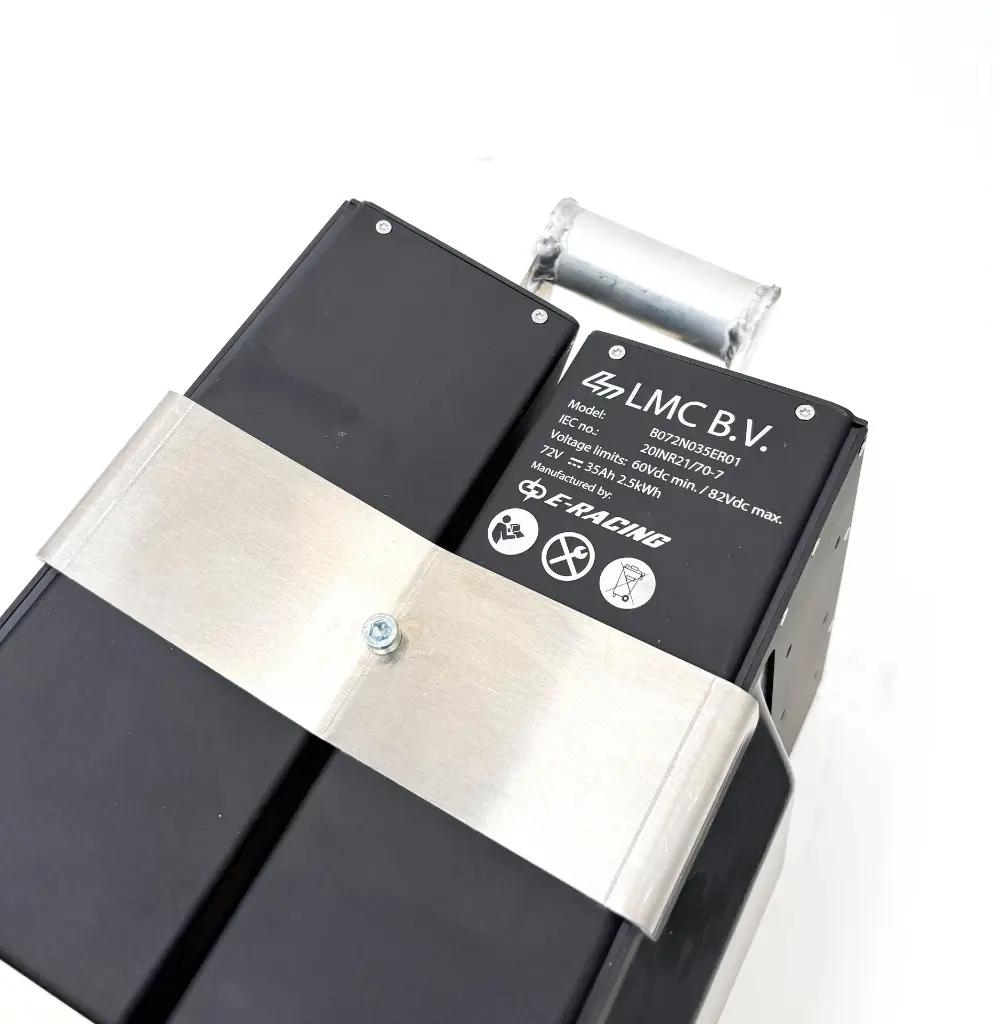

- 2x 2.6kWh packs

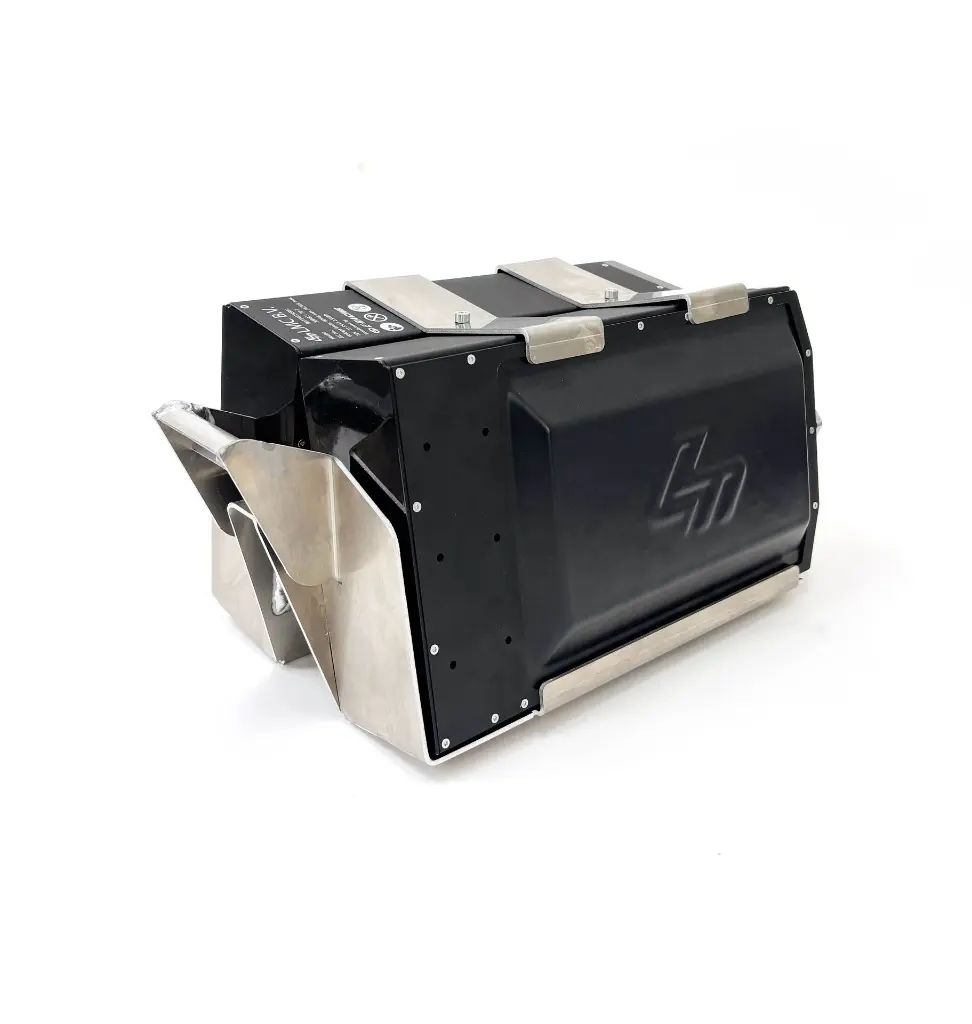

- Aluminium battery housing frame
- Battery connector cables
- SOC display showing % of charge Voltage and Amp
- 18A charger for 110-230V EU/UK/US wall outlet (other outlets on request)

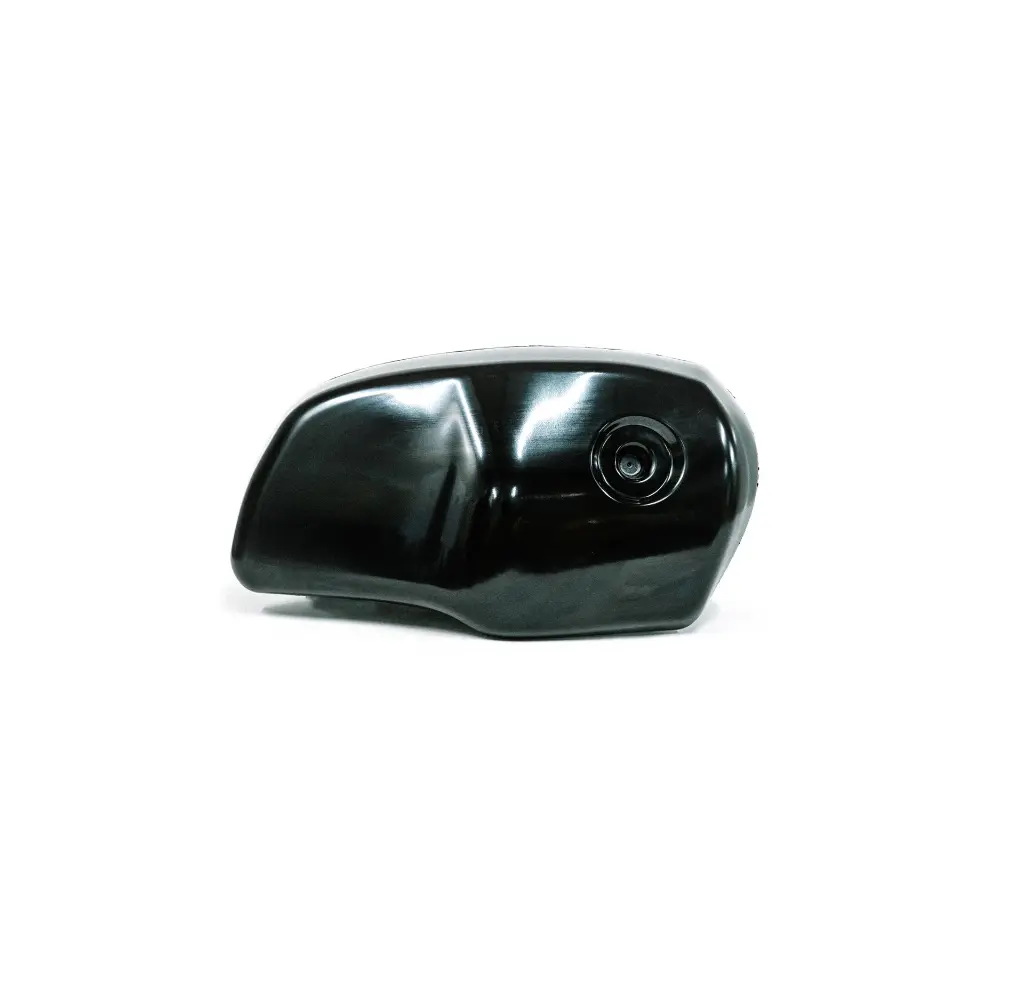

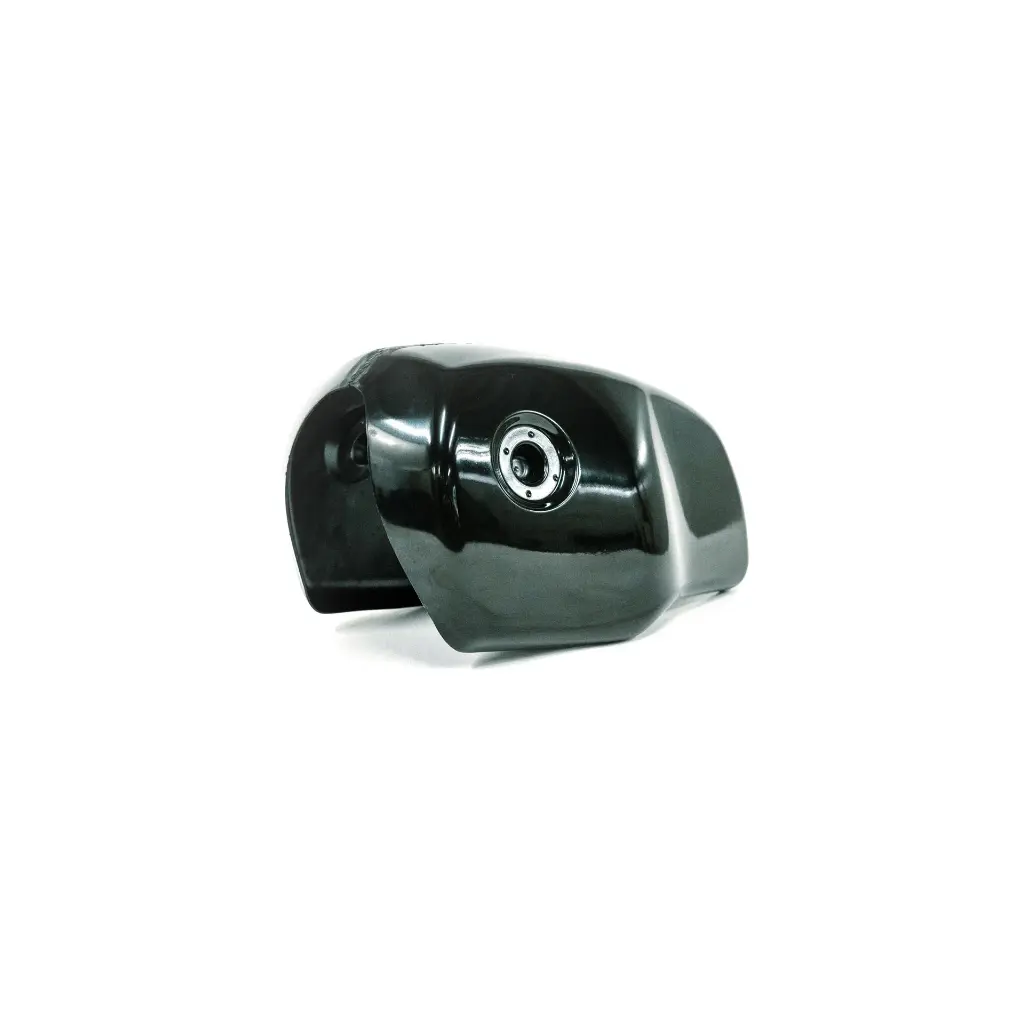

- paintable gas tank shell made of ABS plastic
- new throttle + cable
- wiring for your 12V system
- 2sets of connectors for your 12V system
- Spacers to set the correct flywheel offset
- Clutch alignment tool

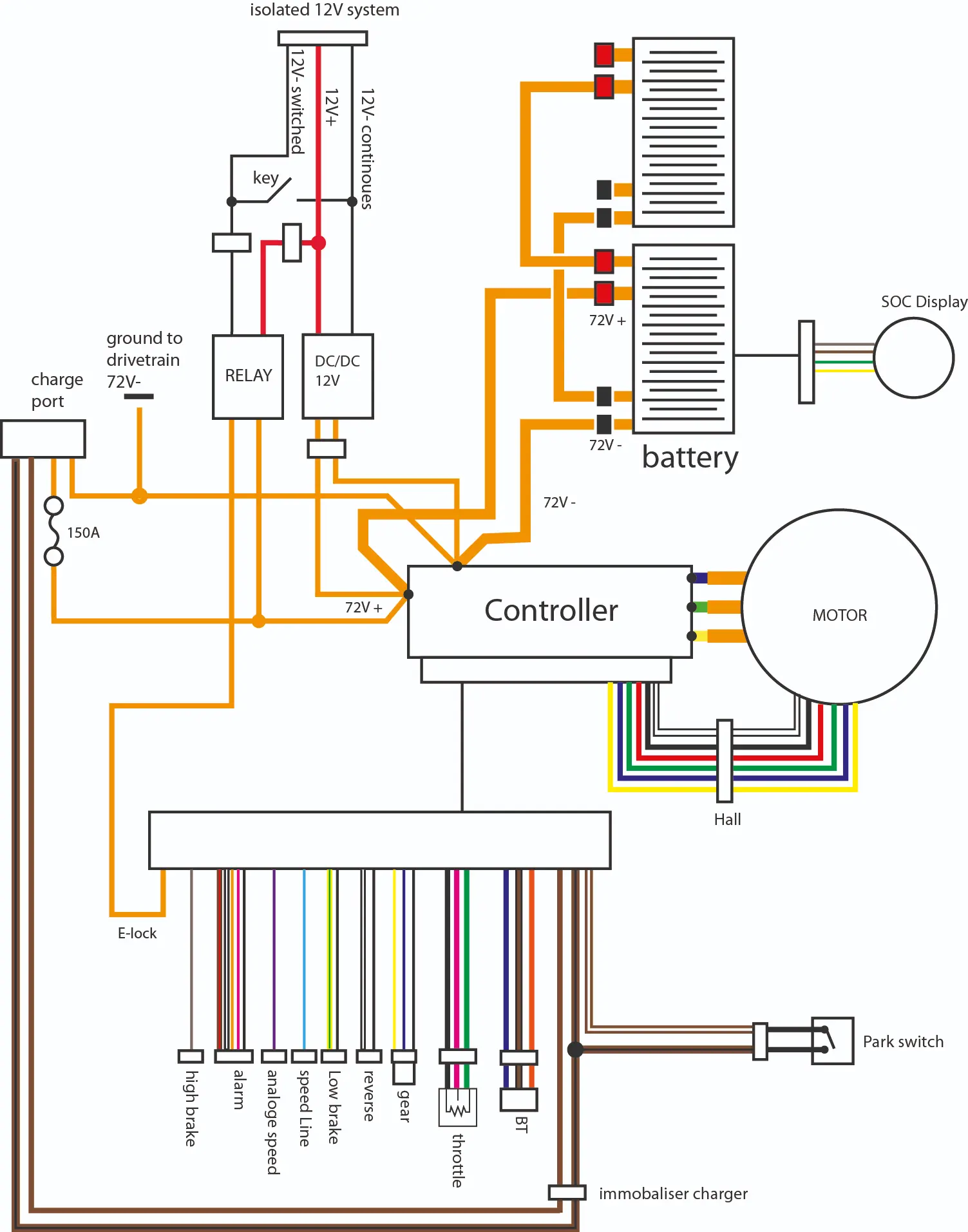

- Wiring diagram
- Fastners to mount the powerunit and gearbox
So everything needed to Plug and play convert your BMW to EV!
We’ll contact you after your order and check your information with you.
If you wish to build your own 72V battery system for the kit you can choos the NO battery option.
*prices are excluding shipping, shipping cost will be invoiced when kits are ready to ship.
For now, choose Custom shipping at check out, we will quote a price for you!
shipping rate indication: (if you want to know the exact price please contact us)
West Europe €200,-
East Europe €350,-
USA/Canada €650,-
Other €900,-
There is also the option of having the Kit installed by us at LM creations for a additional €2000,- euro *(cover paint and gearbox rebuild not included) We can of course always make custom modifications to the bike on request as well, for extra cost.
We uphold a shipping time of 1-2 months as we have the engine castings powdercoated to your delivery.
R00 INSTALATION INSTRUCTIONS
