K20Z4 Engine Swap into an Opel Manta A: Precision Engineering Meets Classic Performance

Swapping a modern Honda K20Z4 engine into a classic Opel Manta A is no small feat. It’s a blend of reverse engineering, high-precision fabrication, and a passion for keeping old-school aesthetics with modern performance. This project required cutting-edge technology and traditional craftsmanship to bring a 1970s icon into the 21st century while preserving its soul.

Reverse Engineering & 3D Scanning

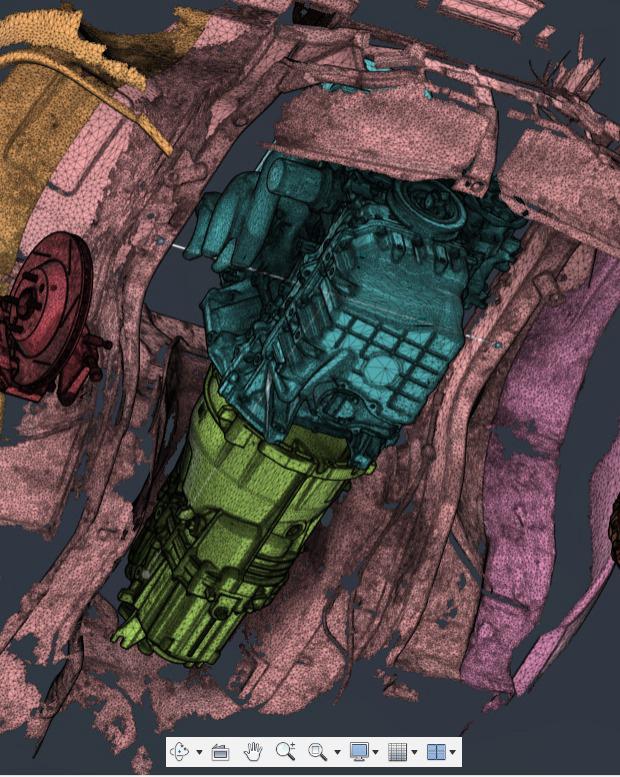

Since the Opel Manta A was never designed to house a high-revving Honda engine, the first step was to map out the entire engine bay and drivetrain. Using 3D scanning, we captured precise measurements of the Manta’s engine bay, subframe, and mounting points. The K20Z4 was also scanned to ensure a perfect fit, down to the last millimeter.

3D Modeling & Custom Fabrication

With digital models of both the car and engine, we designed bespoke engine mounts, a transmission adapter plate, and a subframe reinforcement system. These parts were laser-cut and CNC-milled from high-grade aluminum and steel, ensuring strength and precision. Milled brackets allowed for perfect alignment, avoiding stress points that could cause premature failure.

Precision TIG Welding

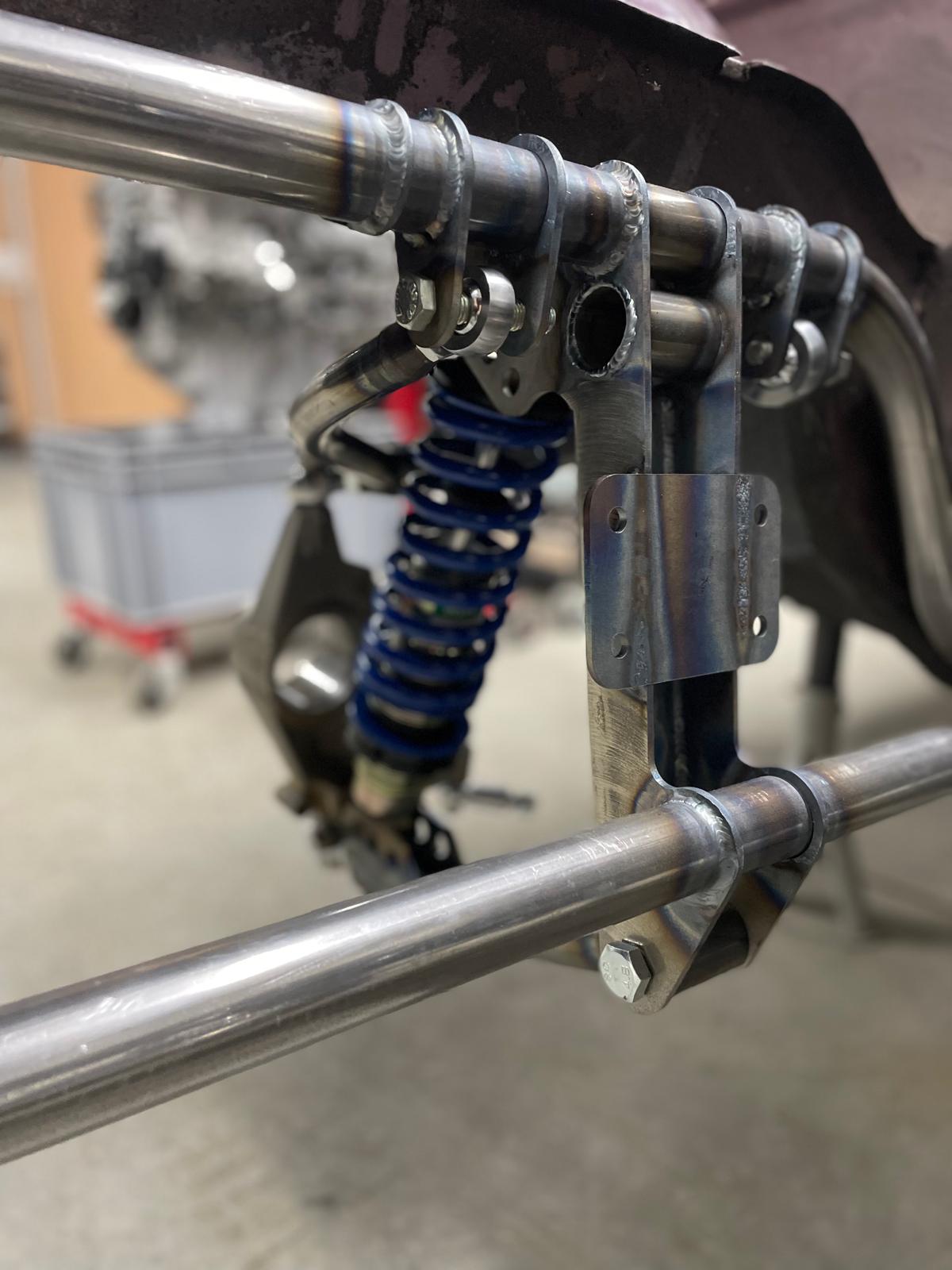

To integrate the K20 securely, custom mounts were TIG-welded for strength and durability. TIG welding was also used to modify the exhaust manifold and fabricate a new stainless steel downpipe, optimizing clearance and flow.

From EFI to Carburetor: A Retro Twist

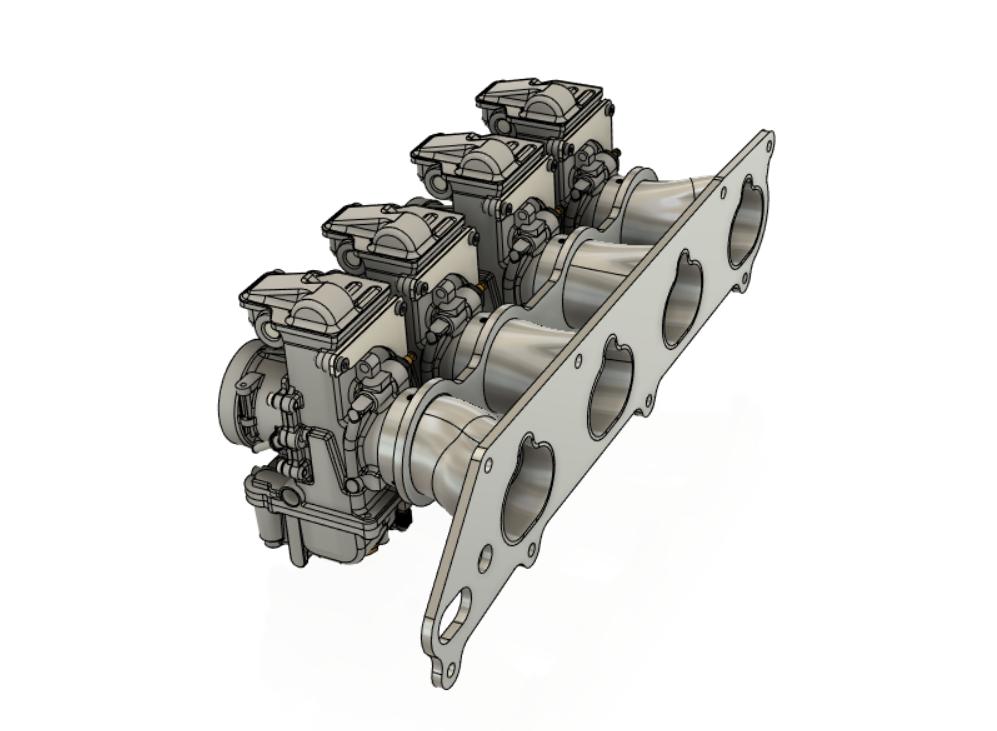

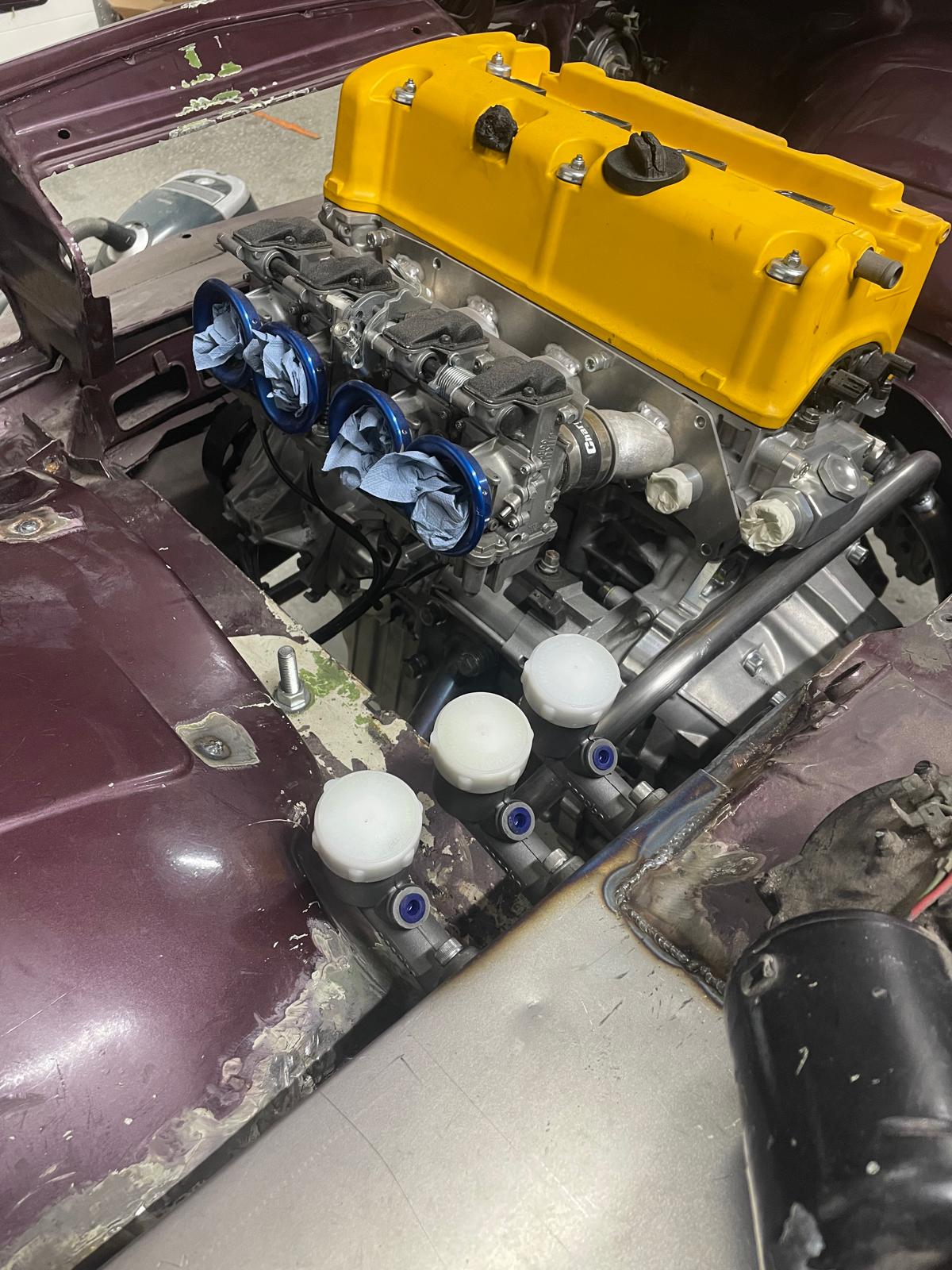

Rather than keeping the Honda’s factory electronic fuel injection, the decision was made to convert it to a carbureted setup, keeping with the Manta’s vintage character. A custom intake manifold was milled to adapt a set of high-performance dual carburetors, and a standalone ignition system was installed to manage spark timing effectively.

Engine Rebuild & Wet Blasting

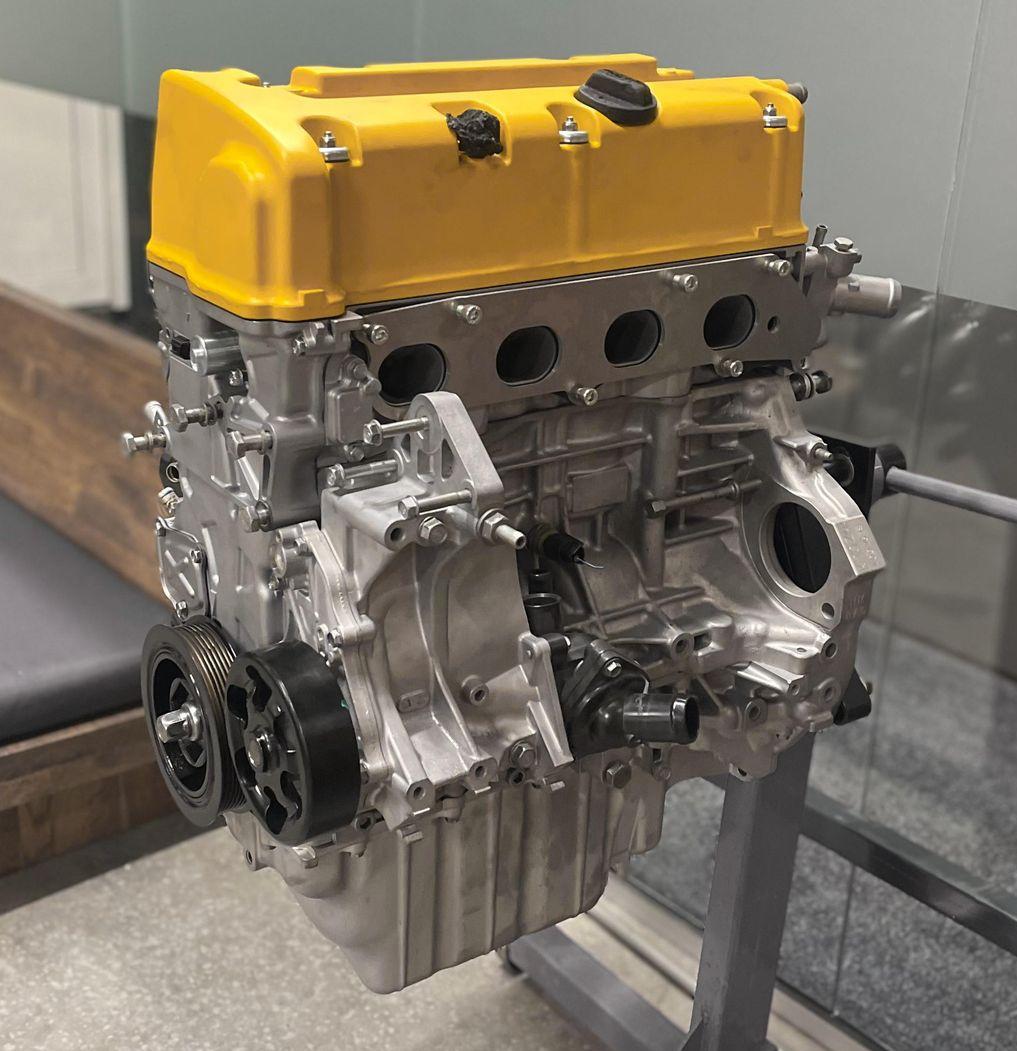

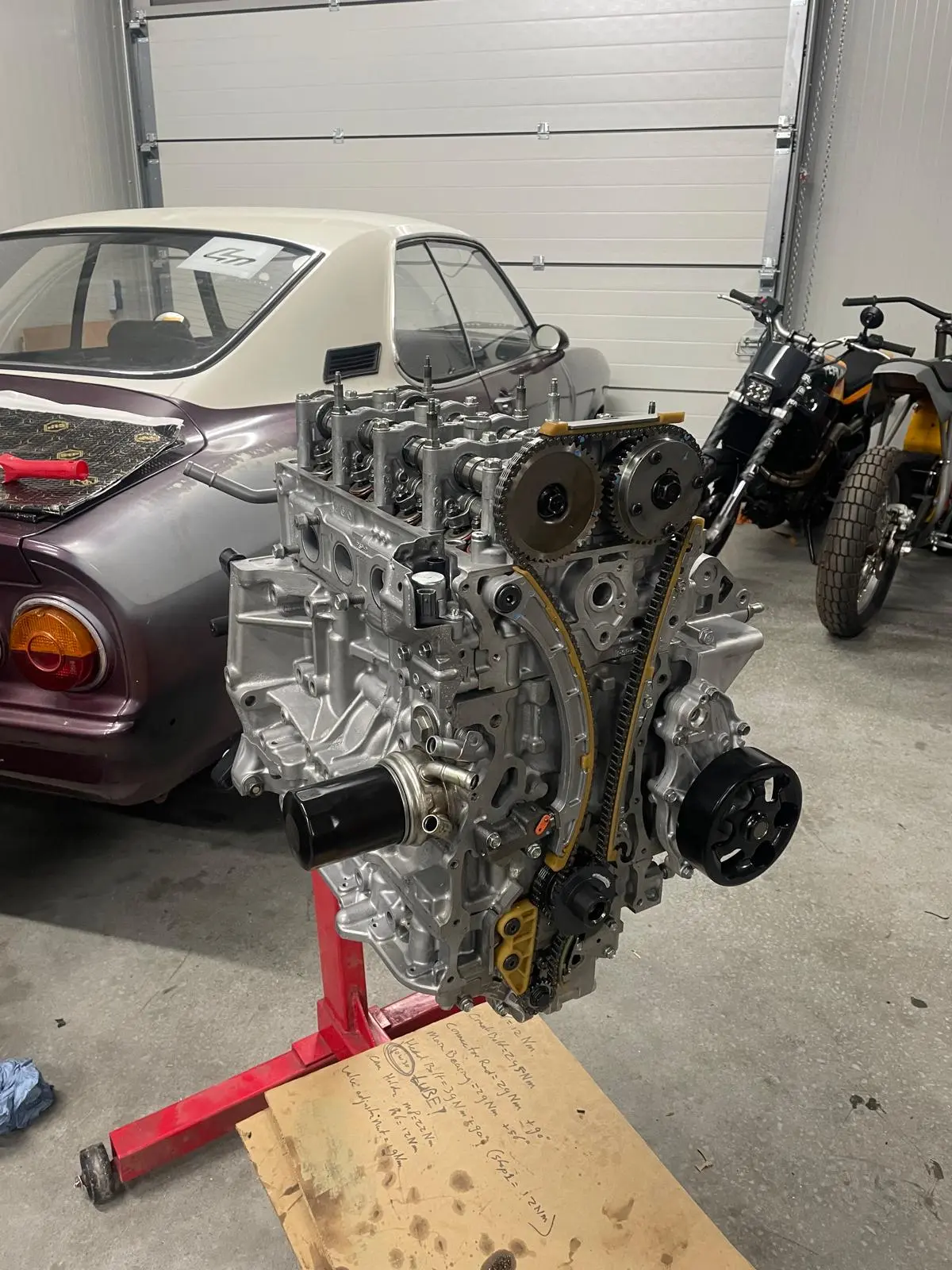

The K20Z4 was fully rebuilt, with all components meticulously cleaned via wet blasting. This process removed oxidation and grime while preserving surface integrity. Every part, from the cylinder head to the crankshaft, was inspected and reassembled with precision to ensure reliability and performance.

Big Brake Conversion

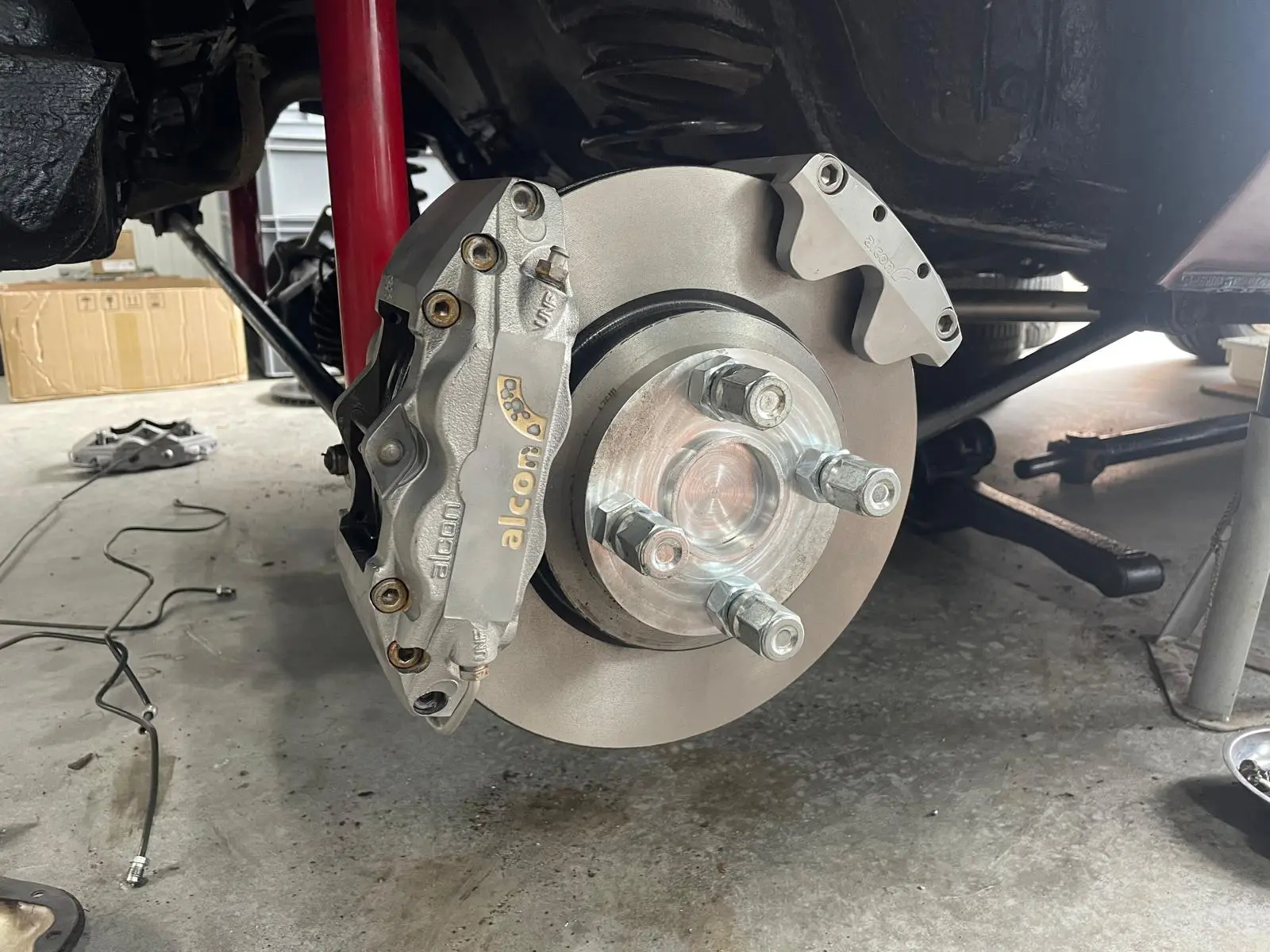

With a much more powerful engine, stopping power had to be upgraded accordingly. A big brake kit was engineered, featuring larger rotors and multi-piston calipers. Custom caliper brackets and hubs were milled to fit, ensuring the perfect geometry and function.

The End Result

The result is an Opel Manta A with the heart of a modern high-performance engine, yet the spirit of a classic racer. Every component, from the laser-cut brackets to the hand-built exhaust, was designed with precision and passion. The blend of cutting-edge technology and old-school engineering makes this swap not just an upgrade, but a work of automotive art.
